Layout before dismounting

The MuMetal plates have been labelled with white tape before they have been taken down. The labels have been attached as shown in the following pictures; The plates are numbered consecutively from 1 to 6, with the starting end being the one where the mapper used to start (a.k.a. ...-end (?)).

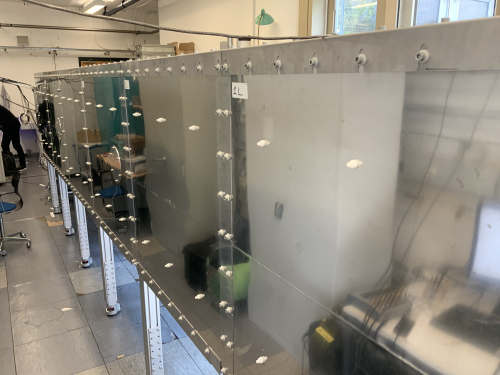

Picture of the left side of the mu-metal

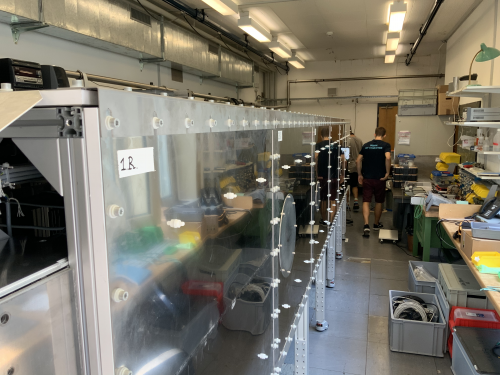

Picture of the right side of the mu-metal

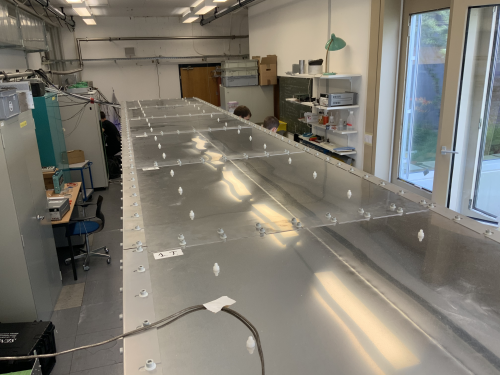

Picture of the top of the mu-metal

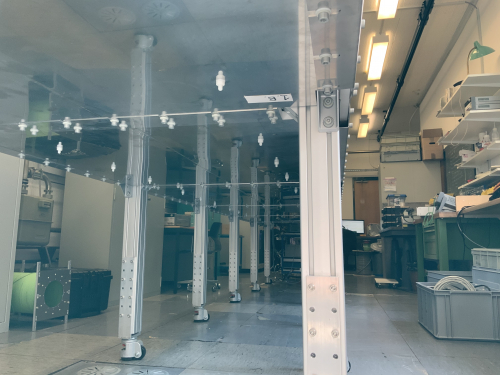

Picture of the bottom of the mu-metal
